Aircraft operation technology for disaster relief (D-NET2)

The Great East Japan Earthquake of March, 2011 struck extremely vast areas while there was only about 3 hour left until sunset. Both factors impeded information gathering by helicopters, and information gathering and judgment took much time. Smooth rescue activities as an initial response were not possible in some areas.

Rescue operations within 72 hours after a natural disaster are by far the most important in the event of a disaster. Because the functions of ground transportation networks have diminished capacities during this period, effective use of aeronautical and space equipment is of the utmost importance for optimal operation of disaster relief aircraft.

JAXA supports enhanced provision for an eventual large-scale disaster by developing the necessary technologies to implement "Integrated aircraft operation system for disaster relief (D-NET2)", which assists collection and sharing of disaster information through the integrated operation of aircraft such as helicopters, unmanned aerial vehicles (UAVs), and satellites, for efficient and safe rescue operations by disaster relief aircraft.

Integrated aircraft operation system for disaster relief (D-NET2)

Objectives of D-NET2

So as to quantitatively validate the performance of D-NET2, JAXA is considering using quality of life (QOL) indices to numerically visualize the progress of relief operations in each region.

The real time integration, organization, and periodical updating of information obtained from aerospace equipment and other sources, such as weather information and hospital information, can minimize regional gaps in relief operations.

Revisions of the damage estimation and countermeasures for large-scale wide-area disasters are underway, with Japan’s Cabinet Office playing a central role. Based on these revisions, and considering the first 72 hours after a disaster being critical, JAXA has defined D-NET2’s performance goal as “a 66% reduction in the areas with QOL2 and under”. In other words, utilizing aerospace equipment in direct search and rescue operations will reduce by 66% in the areas where human life is still endangered, even 72 hours after the disaster.

To achieve this objective, JAXA will continue to promote further research and development in essential aeronautical and space technologies, collaborate with other fields, and cooperate with disaster-response agencies.

Chronological change of QOL distribution following the Great East Japan Earthquake
(Evaluation based on results of JAXA reserch)

Integrated Information management

The “Disaster Relief Aircraft Information Sharing Network” (D-NET) for research and development, and as part of the DREAMS project, has facilitated the integration of information among disaster relief helicopters, medical rescue helicopters, aircraft operation centers, disaster-relief headquarters, ground rescuers, unmanned aircraft, and other disaster relief systems.

The further sharing of disaster relief information obtained from earth observation satellites such as Advanced Land Observing Satellite-2 "DAICHI-2" (ALOS-2), and from unmanned aircraft such as long-endurance unmanned aerial vehicles, can enable more efficient disaster relief operations and timely rescue.

Assisting optimal resource management judgement

D-NET assigns the optimal mission to each aircraft based on local and definite disaster information, helicopters' specifications, weather conditions, etc. This has reduced waiting times for refueling or mission assignments.

We intend to gather and provide broad-based and indefinite disaster information observed by satellites, and to re-configure the algorithm for supporting the planning of optimal flight schedule of disaster relief aircraft.

Mission assistance sub-system

1. Improvement of human interface

As transmission of disaster information from disaster relief aircraft is critical in sharing of disaster information, we have been conducting research and development of human interface which is easier to operate. To further reduce data entry load, which will result in shortened time required for disaster mission information, we intend to improve human interface by such measures as adopting head mounted displays (HMD)

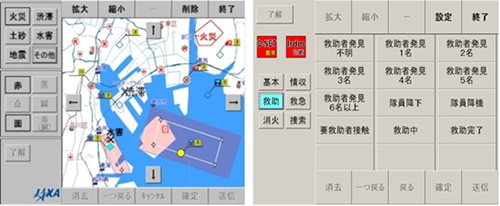

Disaster relief information input interface, developed by JAXA

2. Sharing information on emergency transport

D-NET accommodates Doctor-Helis, and allows sharing of a patient's vital information between the prospective receiving hospital and the Doctor-Heli.

We seek to establish an information application technology, including possible application of relief identification signs by satellites, to rescue large numbers of critically ill or injured during large-scale disasters by such measures as using more strategic judgment (triage) .

3. Assisting of Aerial fire-fighting activities by fire-extinguishing aircraft

JAXA has supported decision-making of water release points by conducting fire spreading simulation. We have also conducted research on human interface technology in a cockpit to precisely guidean aircraft to a water release point.

We will further study precision guidance technology of fire extinguishing aircraft, taking into account factors such as wind effect, so that water might hit a target more precisely.

4. Setting of IFR route networks flyable at IMC

Disaster relief aircraft are deployed on the occurrence of a large-scale disaster from all over Japan to the stricken areas as part of broader area support. We plan to establish a flight route network that is flyable under instrument meteorological conditions (IMC) and by instrument flight rules (IFR), in cooperation with various related organizations so that rescue aircraft can promptly gather even during bad weather.

5. Visual information support by HMD

Theoretically bound by visual flight rules, helicopters are not allowed to fly at night or in bad weather, during which time search and other rescue activities are restricted. JAXA has been conducting studies to improve flight-safety technology for flying at night and/or in bad weather by combining infrared camera and helmet mounted display (HMD), thus displaying such information as images from the camera and map data on the HMD.

We are going to improve the human interface factor furthermore to display information related to those waiting for rescue, aiming at reducing the pilots' work load and the required amount of time for search and rescue activities.

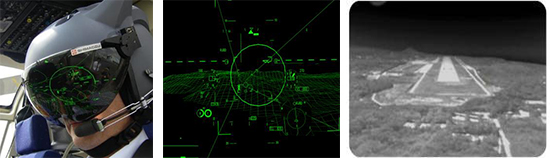

Helmet mounted display (HMD), and examples of displayed infrared camera video and map data

6. Distribution of weather information

JAXA has been developing technology in which weather information is distributed to aircraft from the ground, allowing pilots to judge whether a mission is flyable or not. By sharing weather information from each aircraft, more localized weather information can be obtained, which information may be applied in decision making in strategic optimal operation control

7. Collision prevention technology of aircraft

Mid-air collision has become avoidable by sharing aerial positional information of each aircraft, and collision of aircraft with ground obstructions, such as transmission lines and steel towers, can be prevented by sharing a cartographic database.

Sharing information related to obstructions detected by aircraft enables us to comprehend the situation of more up-to-date obstructions, which engenders enhanced collision prevention.

8. Silent time management

While it is important to operate aircraft optimally for quick rescue operation, aircraft noise might hinder ground search operation for those requiring rescue. In such cases, a measure to ban flights in neighboring airspace, referred to as silent time, might be taken.

Information sharing technology and low-noise operation technology minimize the air-exclusion zone of silence time dynamically.
